Terminal Applicators

Mechtrix THB® Terminal Applicators offer state-of-the-art applicator and tooling designs developed by innovative manufacturing processes and over 30+ years of progressive crimp form geometry research and development.



Our proprietary Mechtrix Crimp-Cadd® Applicator Tooling Design Program has been continuously improved through feedback from customers utilizing our tooling and designs in real world applications. Combined with Mechtrix’s dedication to quality and years of expertise, Mechtrix is able to provide you with high quality, low cost terminal applicators.

S3B Side Feed Terminal Applicator

The Mechtrix / THB® S3B Side Feed Applicator is designed to be used in both bench mounted and fully automatic machines. The S3B Applicator features independent adjustment of both the conductor and insulation crimp heights over a 2mm range in .02mm increments. Additionally, the S3B Applicator has a corrosion resistant plating and all replacement parts are clearly laser engraved for easy identification.

Mechanical or Pneumatic Configurations Available

  • Fully Compatible with most common presses and automatic wire processing machines.
  • Independently Adjustable Crimp Dials allow for precise adjustments to conductor and insulation crimp heights.
  • 30mm and 40mm Stroke Press Operation
  • Quick Change Compatible
  • Heavy Duty Base Plate for increased rigidity.
  • Fully Adjustable Feed System for increased flexibility.
  • Split Anvil Design reduces replacement tooling costs.

[Optional:]

  • Cut-Off Device Tooling

Feed: Mechanical or Pneumatic

Crimping Height: 135.8mm (5.346″)

Press Stroke: 30 or 40mm (1.18″ or 1.58″)

Wire Range: 0.8 – 6.0mm² (AWG 28 – 10)

Max Terminal Feed Pitch: 27mm (1.063″)

Max Terminal Thickness: 1.2mm (0.047″)

Conductor Crimp Height:

Range: 2.0mm (0.079″)

Increments: .02mm (.0008″)

Insulation Crimp Height:

Range: 2.0mm (0.079″)

Increments: 2.0mm (0.079″)

Terminal Strip Brake Pressure: Fixed

Size: 160mm (6.3″) wide x 110mm (4.3″) deep x 155mm (6.1″) high

Weight: 4kg (8.82lbs)

Base Plate Design: Standard 3-Point Quick Change

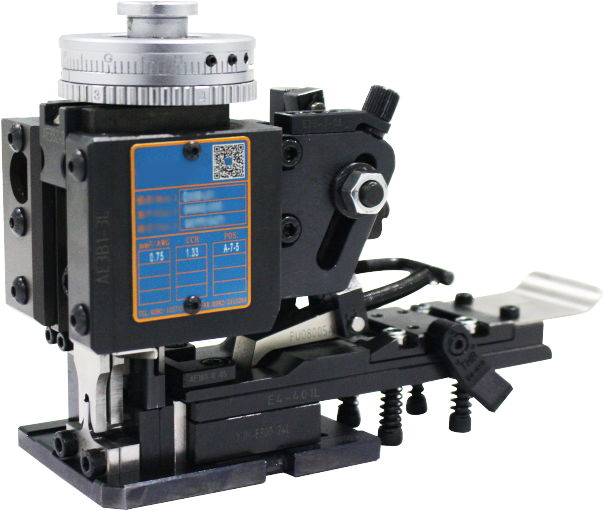

E3B End Feed Terminal Applicator

The Mechtrix / THB® E3B Side Feed Applicator is designed to be used in both bench mounted and fully automatic machines. The E3B Applicator features independent adjustment of both the conductor and insulation crimp heights over a 2mm range in .02mm increments. Additionally, the E3B Applicator has a corrosion resistant plating and all replacement parts are clearly laser engraved for easy identification.

Mechanical or Pneumatic Configurations Available

  • Fully Compatible with most common presses and automatic wire processing machines.
  • Independently Adjustable Crimp Dials allow for precise adjustments to conductor and insulation crimp heights.
  • 30mm and 40mm Stroke Press Operation
  • Quick Change Compatible
  • Heavy Duty Base Plate for increased rigidity.
  • Fully Adjustable Feed System for increased flexibility.
  • Split Anvil Design reduces replacement tooling costs.

[Optional:]

  • Cut-Off Device Tooling

Feed: Mechanical or Pneumatic

Crimping Height: 135.8mm (5.346″)

Press Stroke: 30 or 40mm (1.18″ or 1.58″)

Wire Range: 0.8 – 6.0mm² (AWG 28 – 10)

Max Terminal Feed Pitch: 27mm (1.063″)

Max Terminal Thickness: 1.2mm (0.047″)

Conductor Crimp Height:

Range: 2.0mm (0.079″)

Increments: .02mm (.0008″)

Insulation Crimp Height:

Range: 2.0mm (0.079″)

Increments: 2.0mm (0.079″)

Terminal Strip Brake Pressure: Adjustable

Size: 70mm (2.8″) wide x 195mm (7.7″) deep x 155mm (6.1″) high

Weight: 4kg (8.82lbs)

Base Plate Design: Standard 3-Point Quick Change
