Mechtrix Blades

Mechtrix wire stripping and cutting blades are manufactured using specially alloyed tool steels and tungsten carbides to offer superior performance at lower costs than standard OEM blades. Mechtrix offers 35,000+ different cutting and stripping blades for all popular brands of automatic wire processing machines.

Custom Blades

Mechtrix also designs and manufactures custom blades for unique wire processing challenges. Utilizing our patented blade form geometries, our knowledgeable engineering support staff can provide you with an affordable custom solution to meet your wire processing needs. If you have a custom or special application you would like our experts to evaluate or quote, Contact Mechtrix about the requirements or for more information.

sales@mechtrix.com

+1 (262) 255-6555

Mechtrix Blade Catalogs

Wire Stripping Machine Manufacturers

Listed A-Z

Unable to Find Your Wire Processing Machine?

If you are unable to find your exact model or brand of wire processing machine, Mechtrix can still provide you with tooling for your machine. Mechtrix specializes in custom stripping blades and can reverse-engineer a replacement or develop a custom application to suit your specific needs.

Contact Mechtrix Today for More Information.

Standard Blade Forms

Universal Stripping Form

Advantages

• Fastest set-up and changeover time

• Greatest range of adjustability

Typical Applications

• Easy to strip PVC and soft insulations

V-Style Stripping Form

Advantages

• Adjustability over a small range of wire

• Up to 60% circumferential cutting

Typical Applications

• PVC, Neoprene, & Silicon insulations

M-Series® Stripping Form

Advantages

• Patented design w/limited adjustability for wire variation

• Up to 85% circumferential cutting

Typical Applications

• Thinwall PVC, X-Link, Hypalon, & Fiberglass insulations

Full Radius Stripping Form

Advantages

• By-passing cutting action

• 100% circumferential cutting

Typical Applications

• UltraThinwall, Teflon, Fiberglass, and Soft Jacketed Cables

Die-Type Stripping Form

Advantages

• Mechanical butting stripping action

• 100% circumferential cutting

Typical Applications

• UltraThinwall, Teflon, Crosslink, and Jacketed Cables

Cyclonic-V® Stripping Form

Advantages

• Patented wire specific design for the most difficult applications

• Blade form thickness is 50% of other blades

Typical Applications

• Very hard, very soft, and other difficult to process insulations

Special Blade Forms

Cut-Off Only Form

Advantages

• Form geometry design can strengthen or create sharper blades for more precise control of the cut-off action by adjusting the form incline and gather angles

Straight Cut-Off / Stripping From

Advantages

• These blades allow for a cleaner cut-off of flat material and/or stripping of PVC insulations of flat multi-conductor cables

Jacket Stripping Form

Advantages

• Specifically sized form geometry strips all four sides of flat multi-conductor jacketed cables, allowing for automatic processing

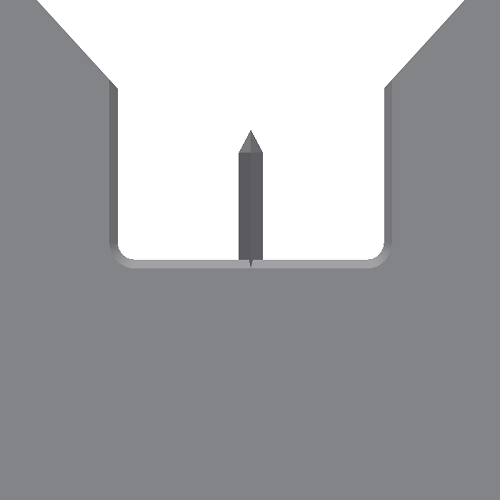

Slitting Blades

Advantages

• Mechtrix’s unique design geometry provides maximum blade life and precise slitting control for both round and flat multi-conductor cables

Steel-Cut Form

Advantages

• Special cut-off only shear blades with supports for stainless steel and other non-copper conductors or cable cores

Multi-Conductor Form

Advantages

• Multi-conductor stripping forms with specific center-to-center dimensions to exactly match the cable construction for superior insulation removal

Specialty Stripping Forms

Advantages

• Custom made to size and shape for custom wire configurations or other special stripping applications
